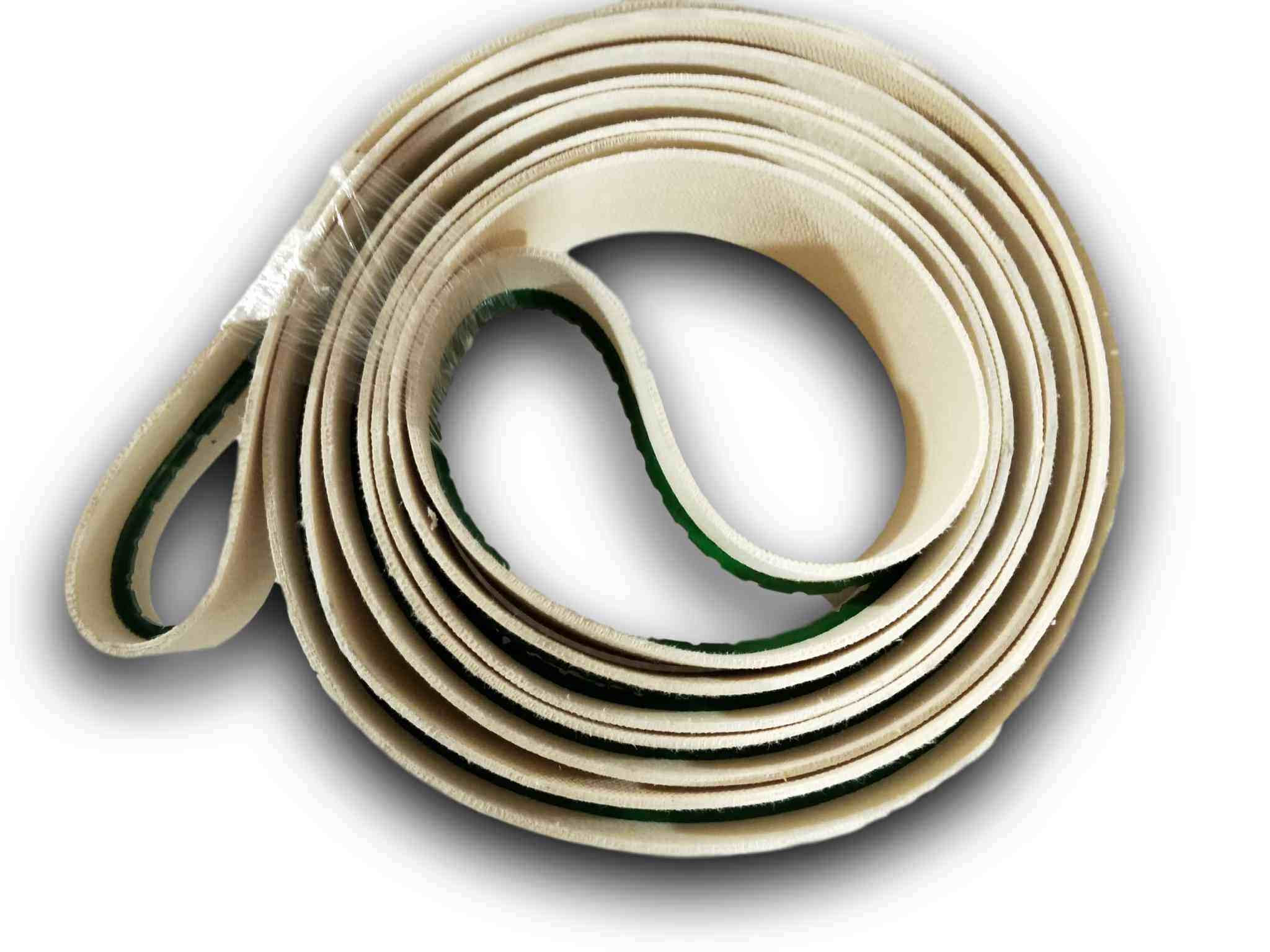

Endless Belt with V-guide
For special equipments or to achieve some effect, we will make some special treatment on the endless belts.
- FEATURES -
▲ Endless Belt
- Heat-resistant Fibers With Working Temperature up to 600℃
- Needle Punching for High Abrasion Resistance and High Density Structure
- With Tension Member Ensuring No Elongation

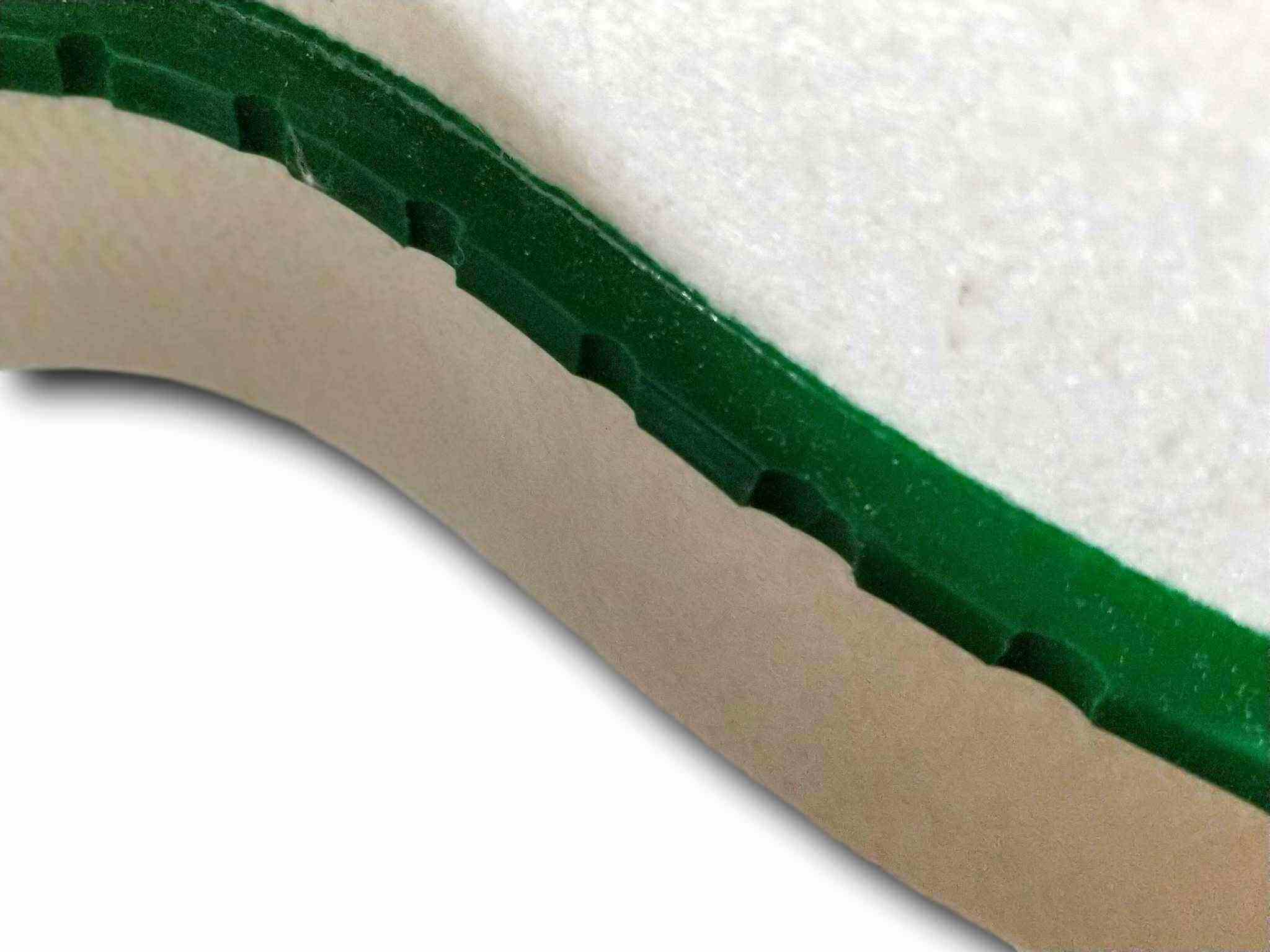

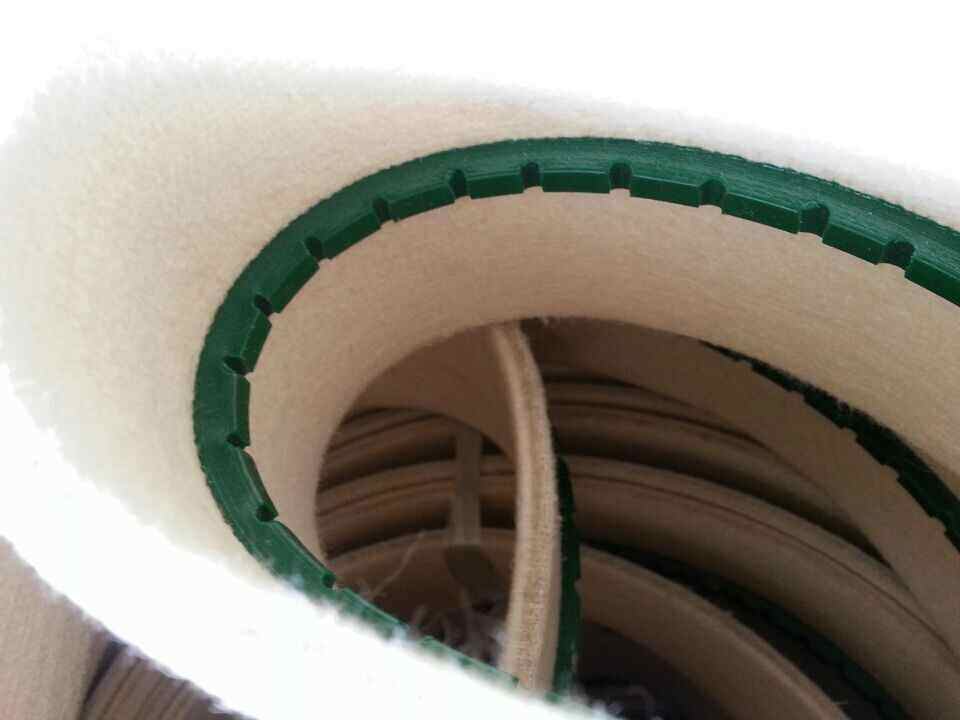

▲ V-guide Placed on the Bottom To Avoid Off Tracking
▲ Hot Melting Techinic NOT Glue Paste, Inseparable for V-guide and Felt
- APPLICATION -
Mainly for aluminium extrusion handling system, especially for heavy-duty production lines
- V-GUIDE MATERIAL-

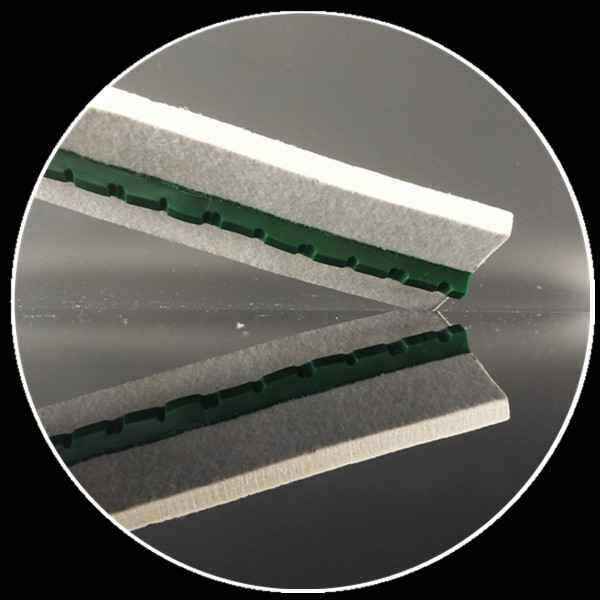

PVC

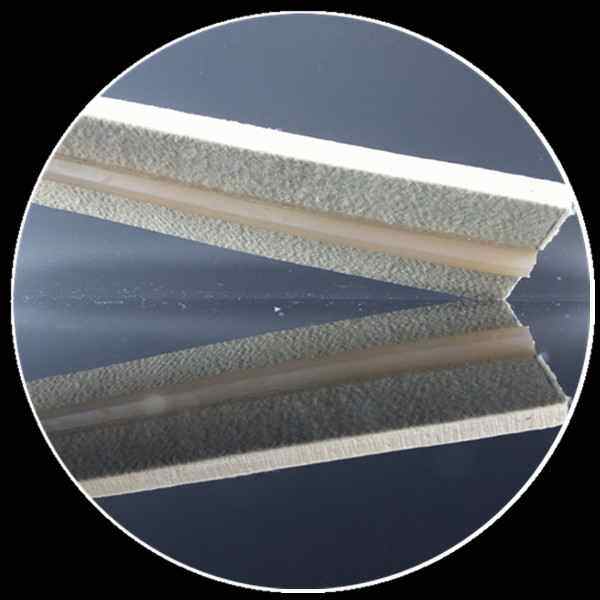

PU

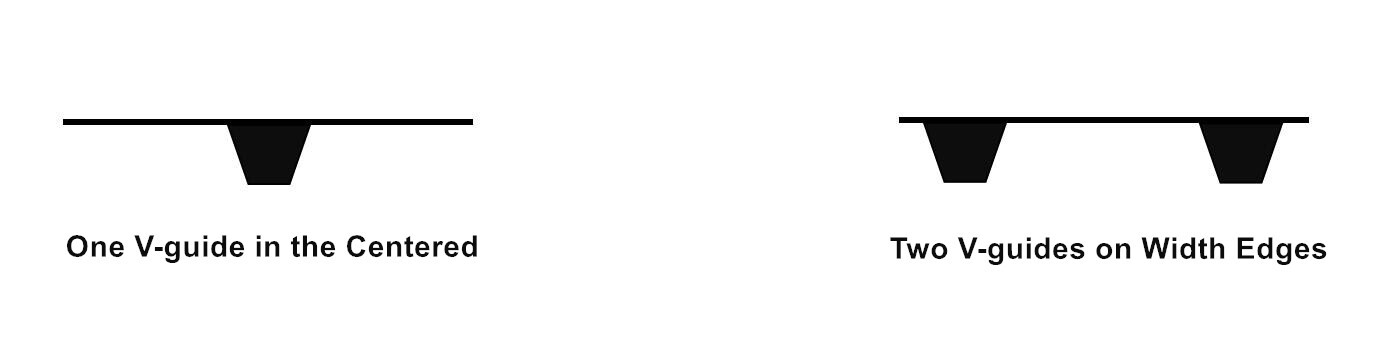

- V-GUIDE QUANTITY & POSITION -
Some Tips You Might Know
Please state the position of the v-guides when you need quotation or place orders
Length: 1750mm - 11000mm
Width: 20mm - 1300mm
Thickness: 5mm - 12mm
MOQ: 400mm in total width
Treatment: with Resin

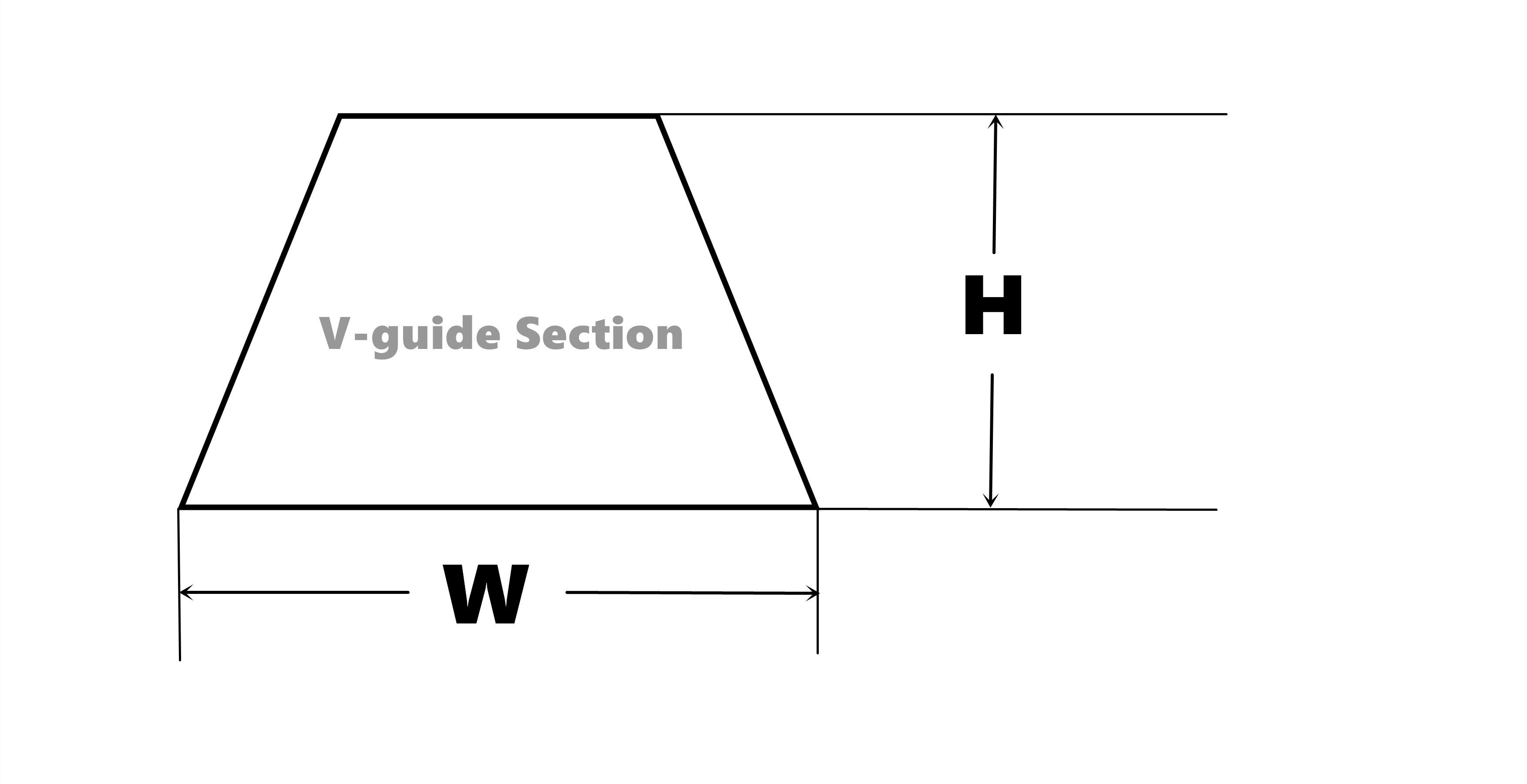

| V-GUIDE TYPE | SHAPE | DIMENSION(MM) | PVC | PU | NOTCHED |
| K13 | Trapezoid | 13×8 | √ | √ | √ |
| K10 | Trapezoid | 10×6 | √ | √ | √ |
| K8 | Trapezoid | 8×5 | √ | √ | √ |
