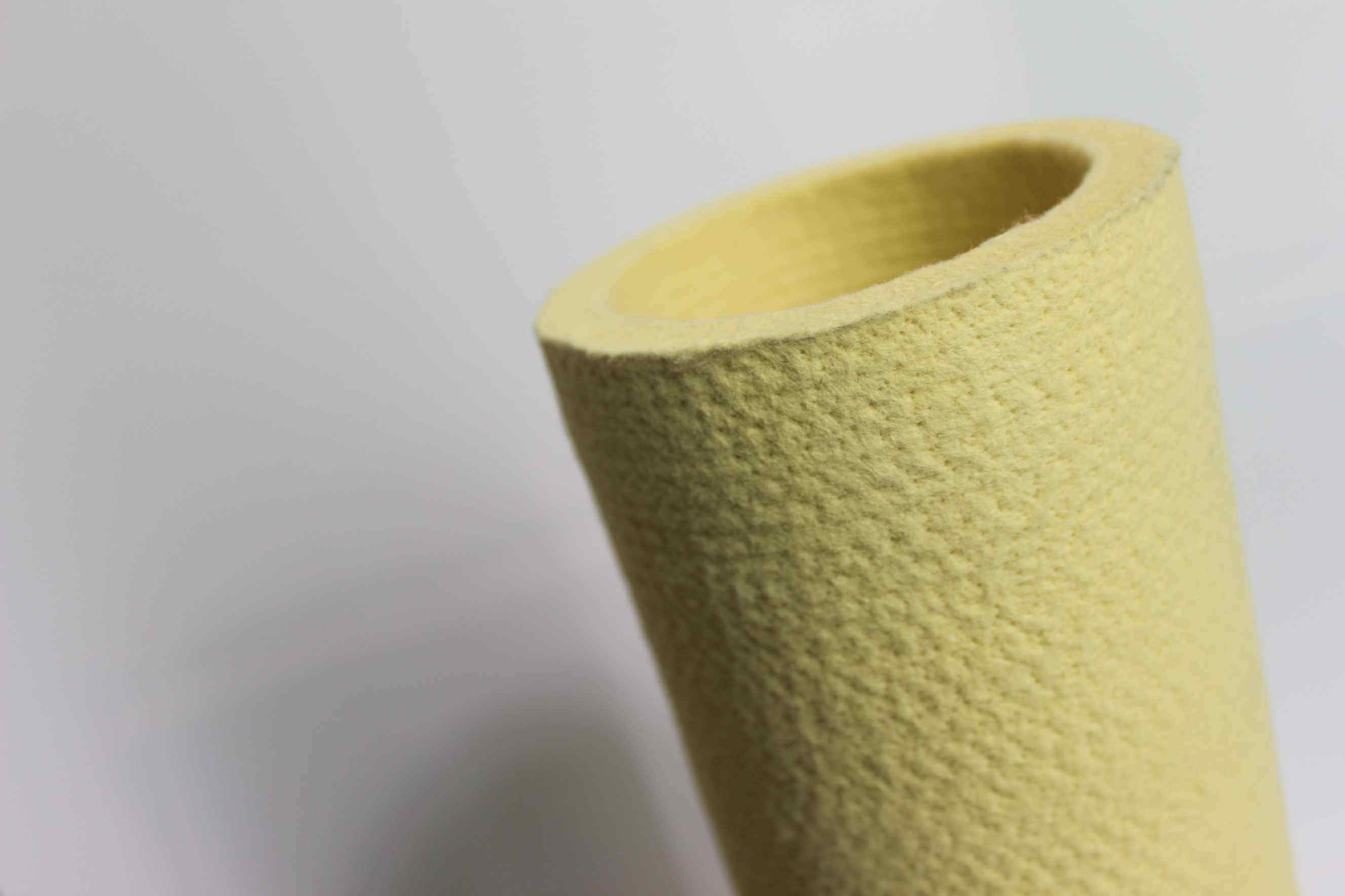

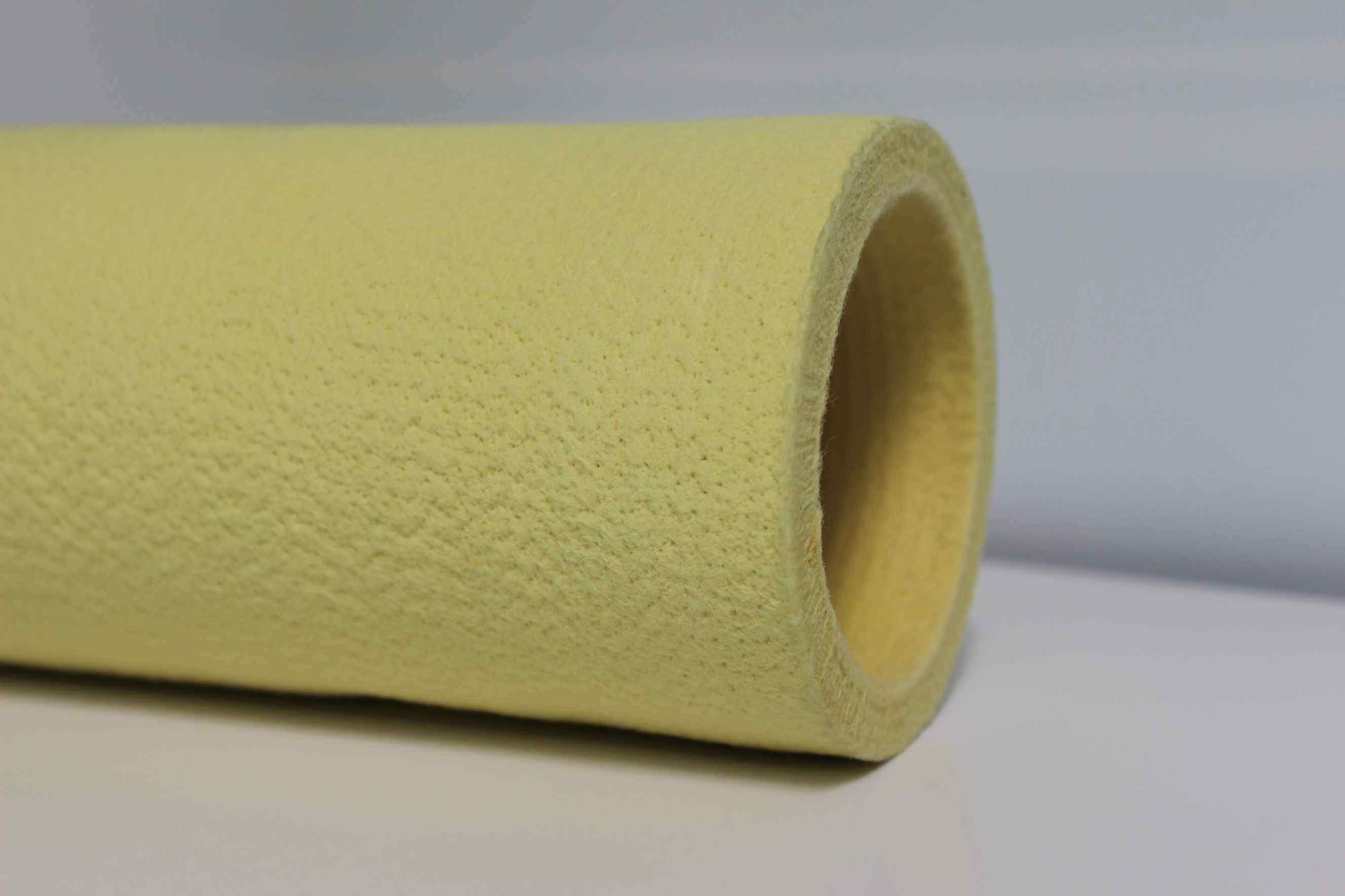

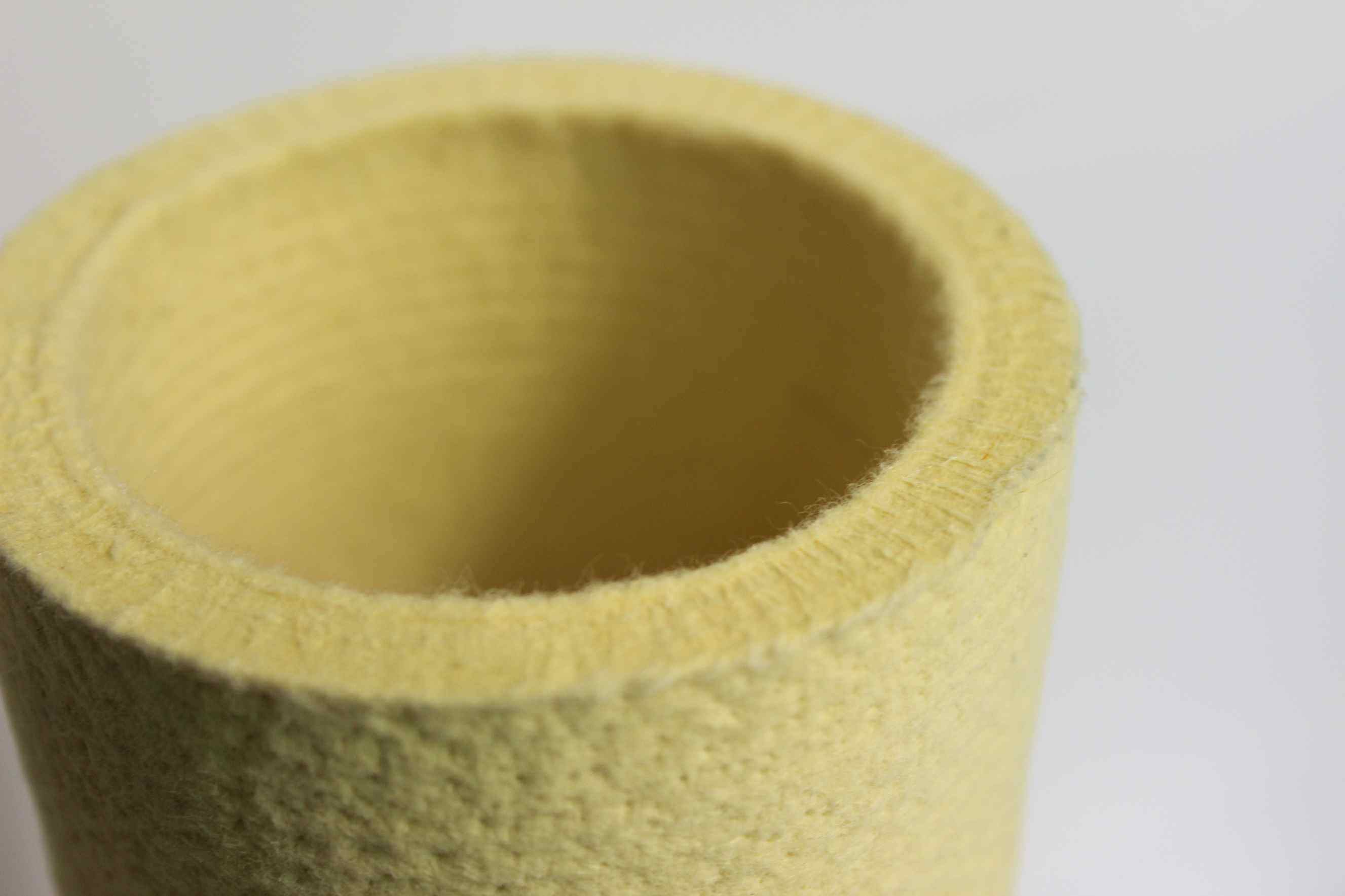

Para-aramid Roller Sleeve

Roller sleeve is a rotatable cylindric object that conveys the materials forward. When it comes to aluminium industry, roller sleeves can be used horizontally and vertically, for heat resistance and abrasion resistance. It is mainly used for aluminium extrusion initial table, run-out table, finish cut saw table etc.

Contact Us
Quick Inquiry

- FEATURES -

Visible Materials Made of 100% Para-aramid Fiber With Working Temperature up to 500℃

Needle Punching Technics High Abrasion Resistance and High Density Structure

Vertical Cylinder With Smooth Cutting and Even Surface

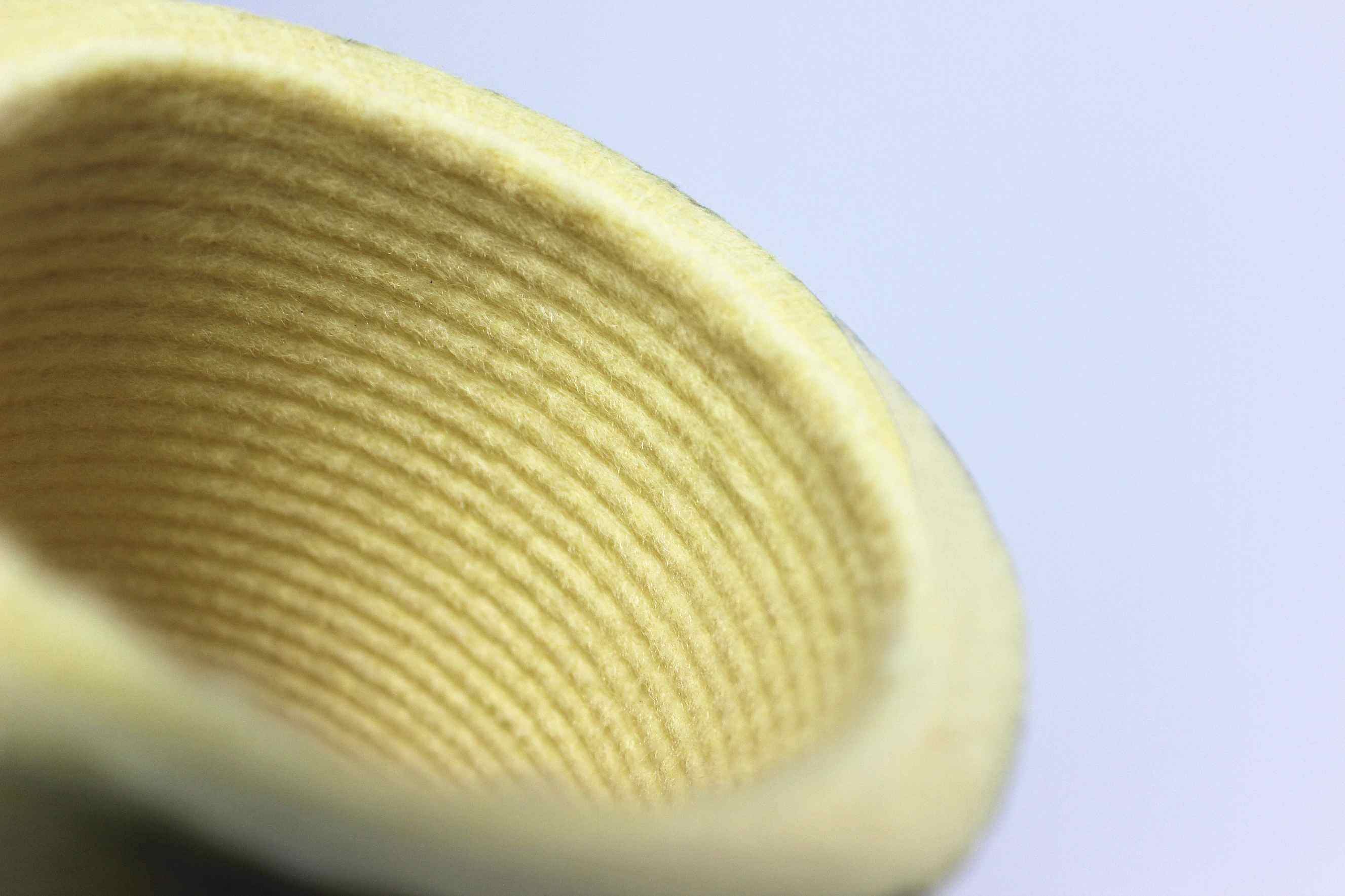

Inner Ripple Grains Enhancing Friction between Galvanized Roller and Felt Roller to Avoid Slipping

- APPLICATION -

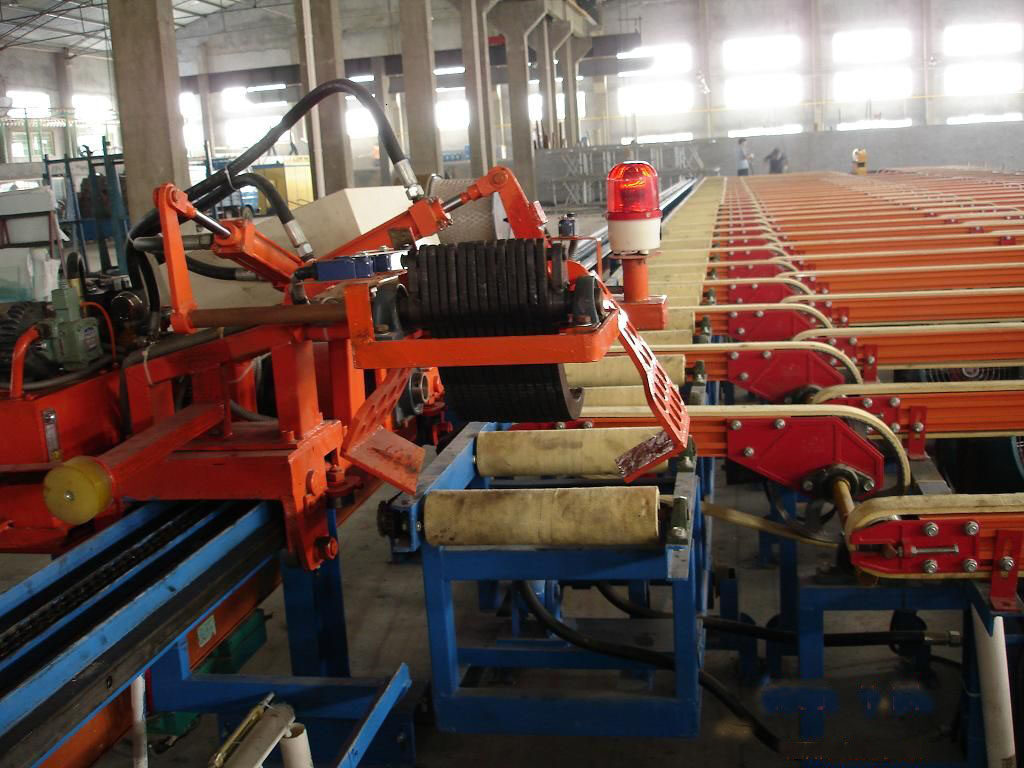

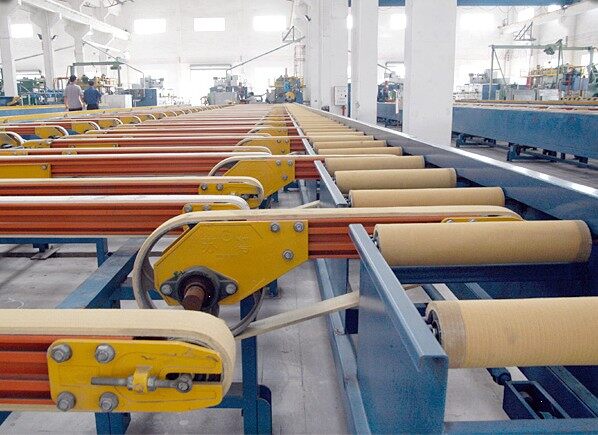

Mainly for Aluminium Extrusion Handling System

  • Run-out Table

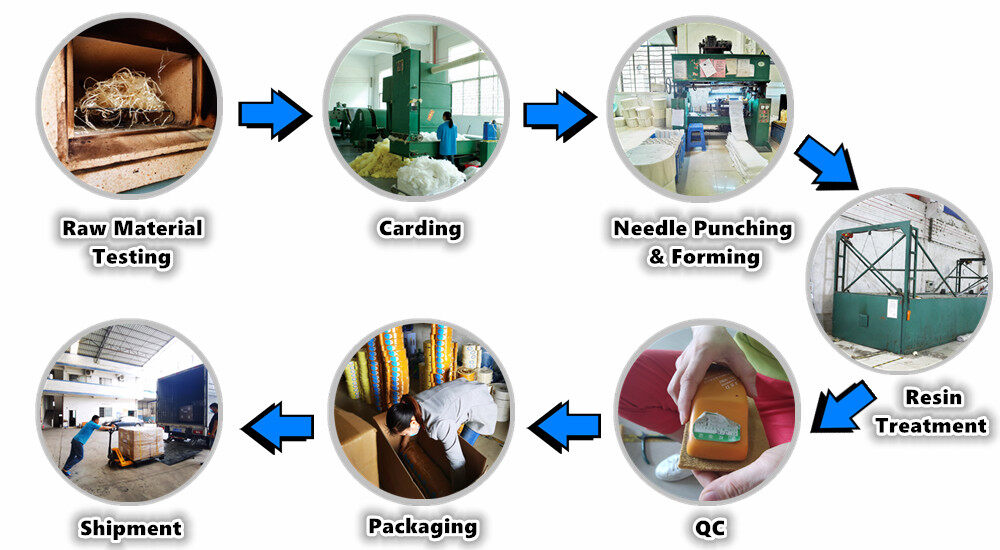

- PRODUCTION PROCEDURE -

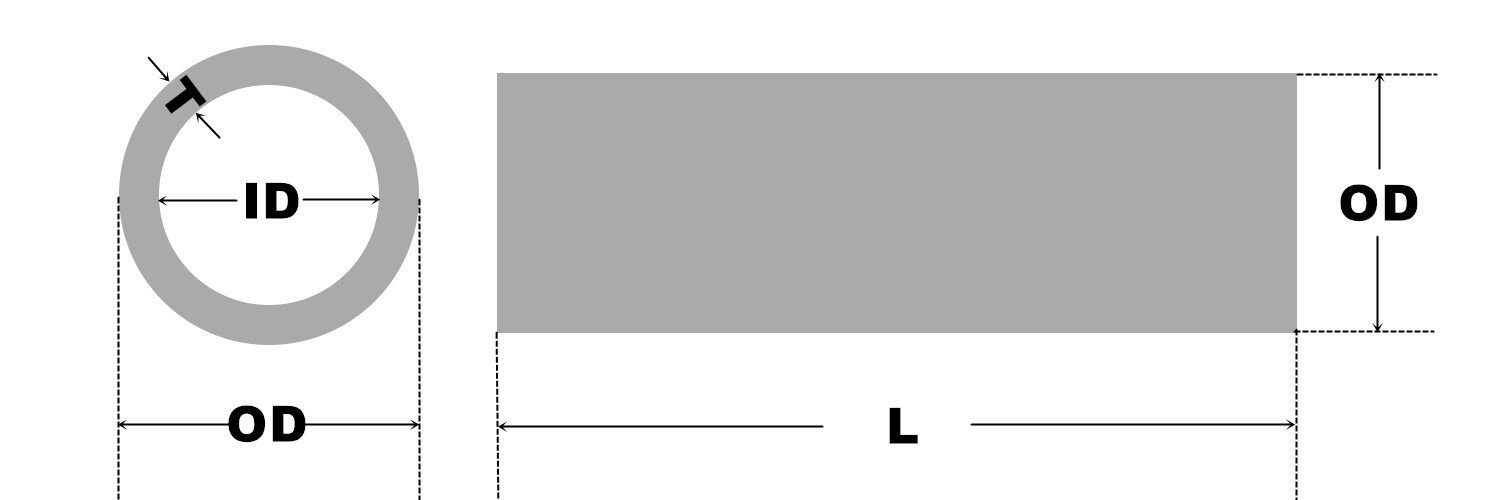

Length: Customized

Inside Diameter: 38mm - 200mm

- Common-used ID: 50mm, 60mm, 76mm, 80mm, 89mm

Thickness: 5mm - 12mm

- PBO Thickness: 2mm - 5mm

MOQ: None Some Tips You Might Know Thickness = (Outside Diameter - Inside Diameter) / 2
