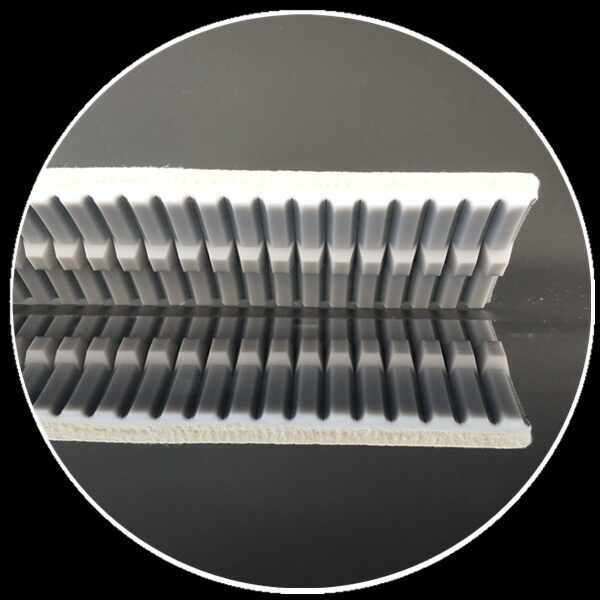

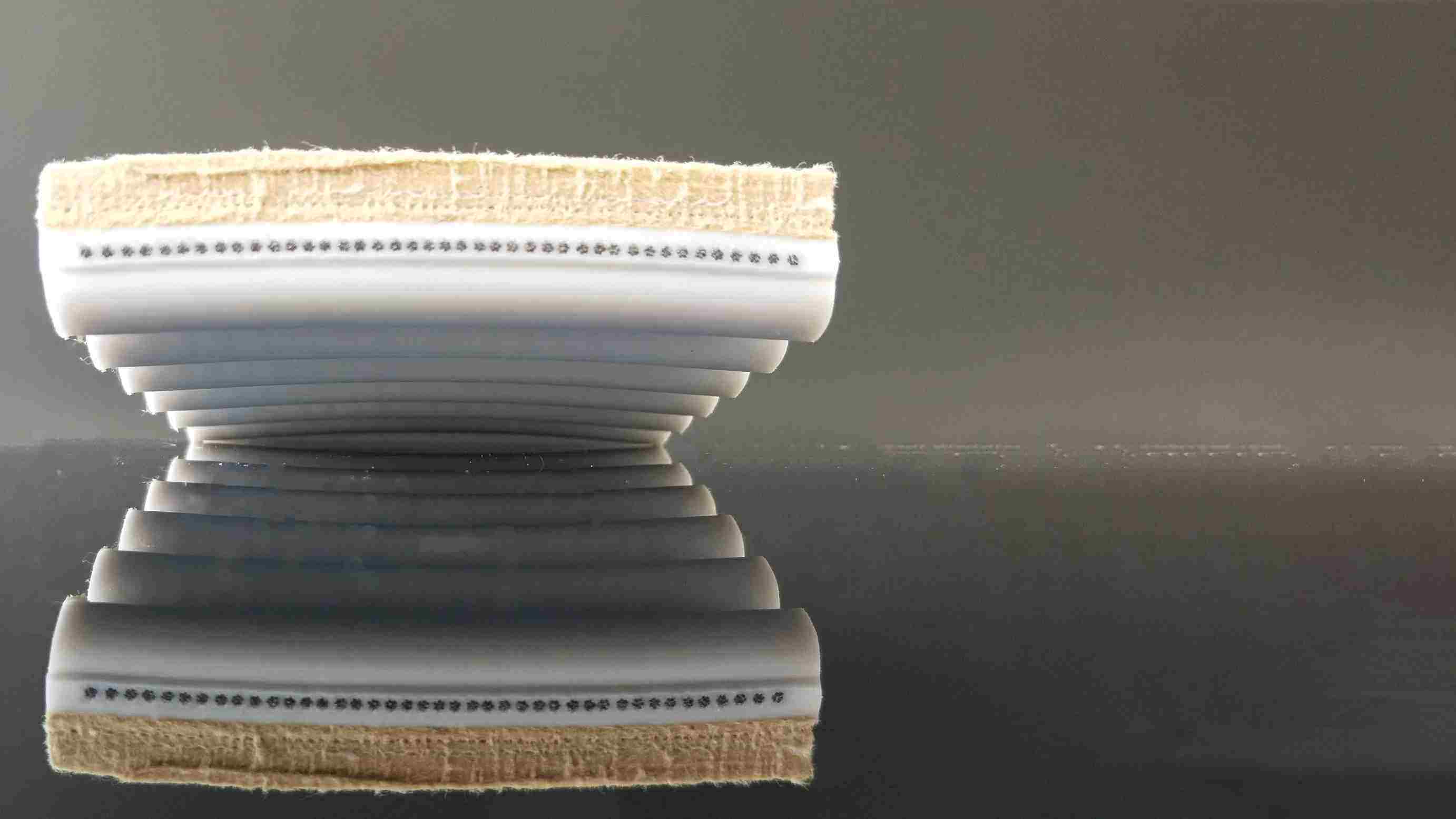

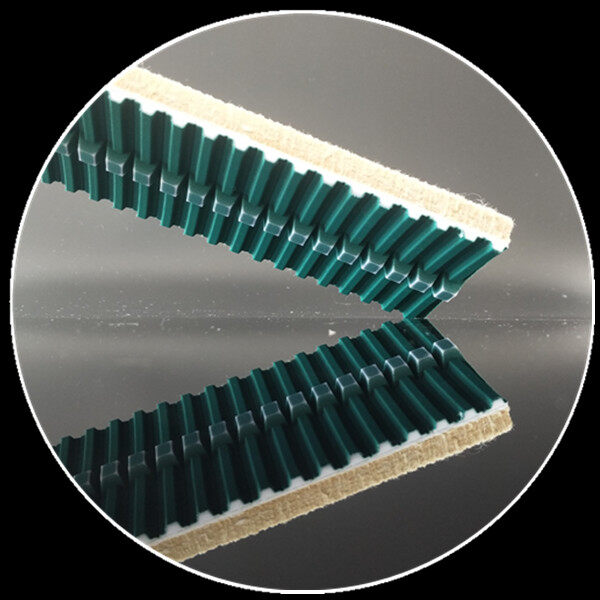

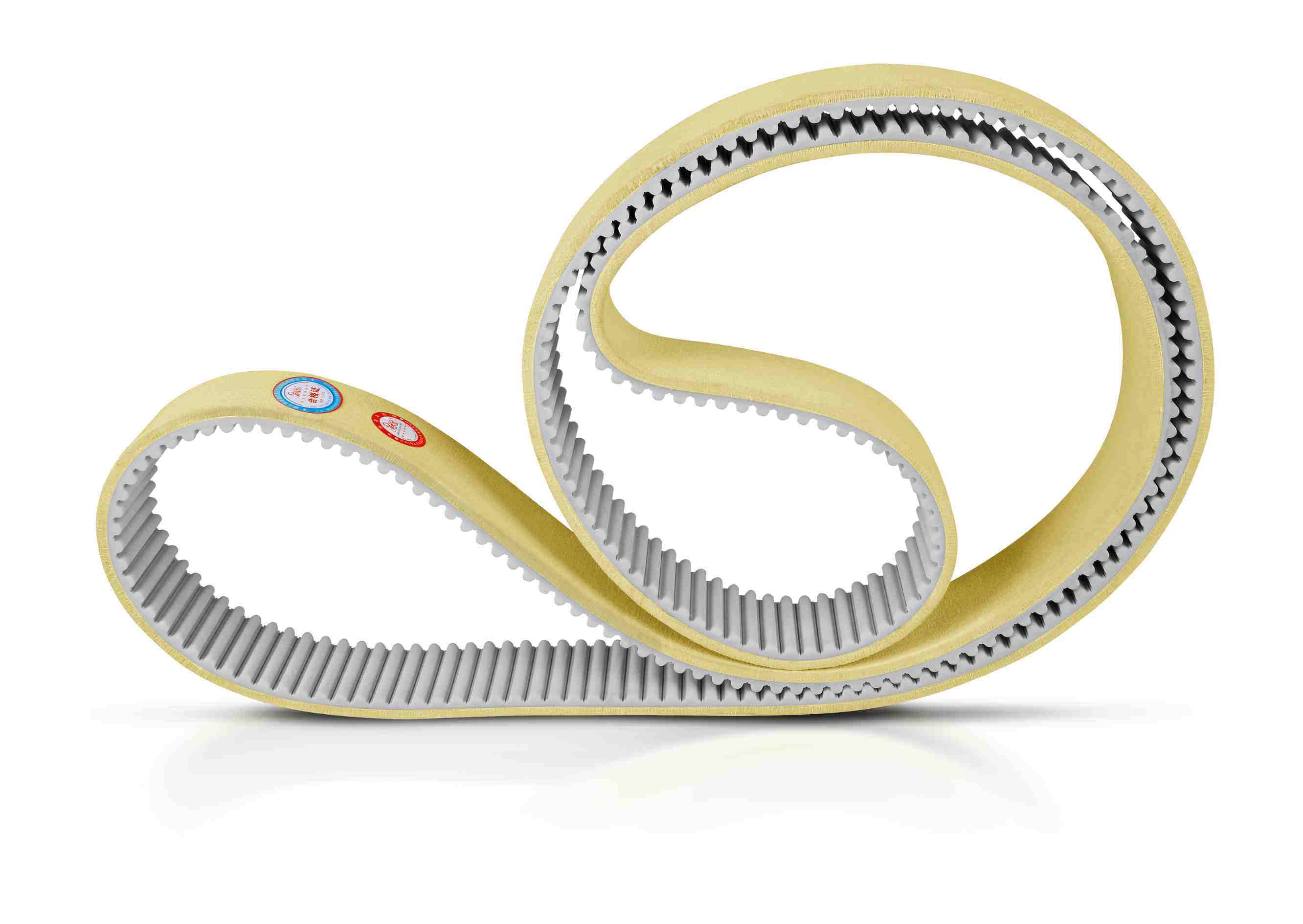

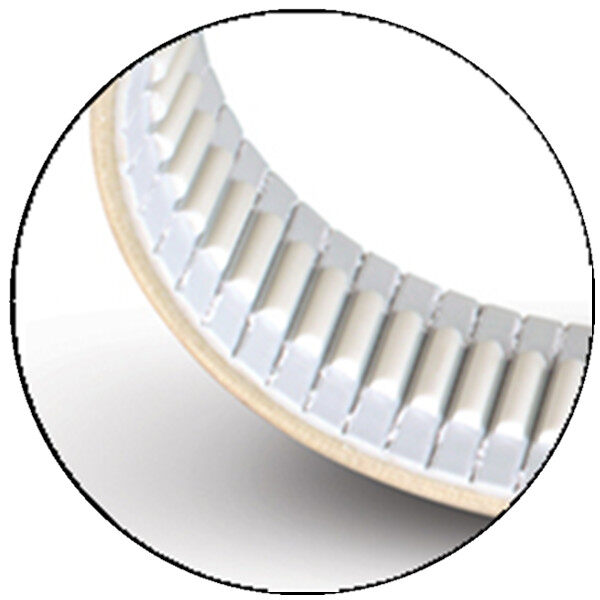

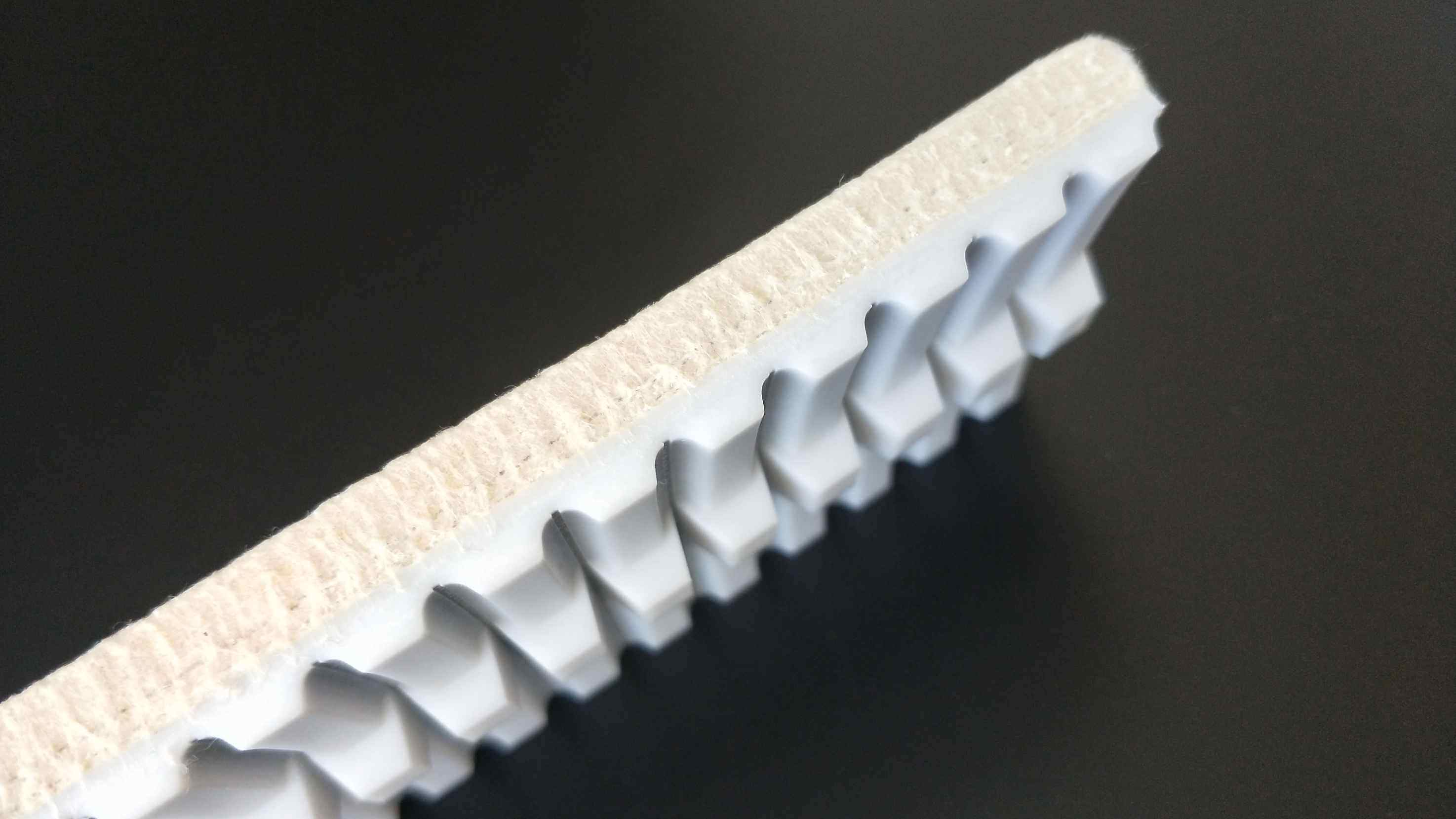

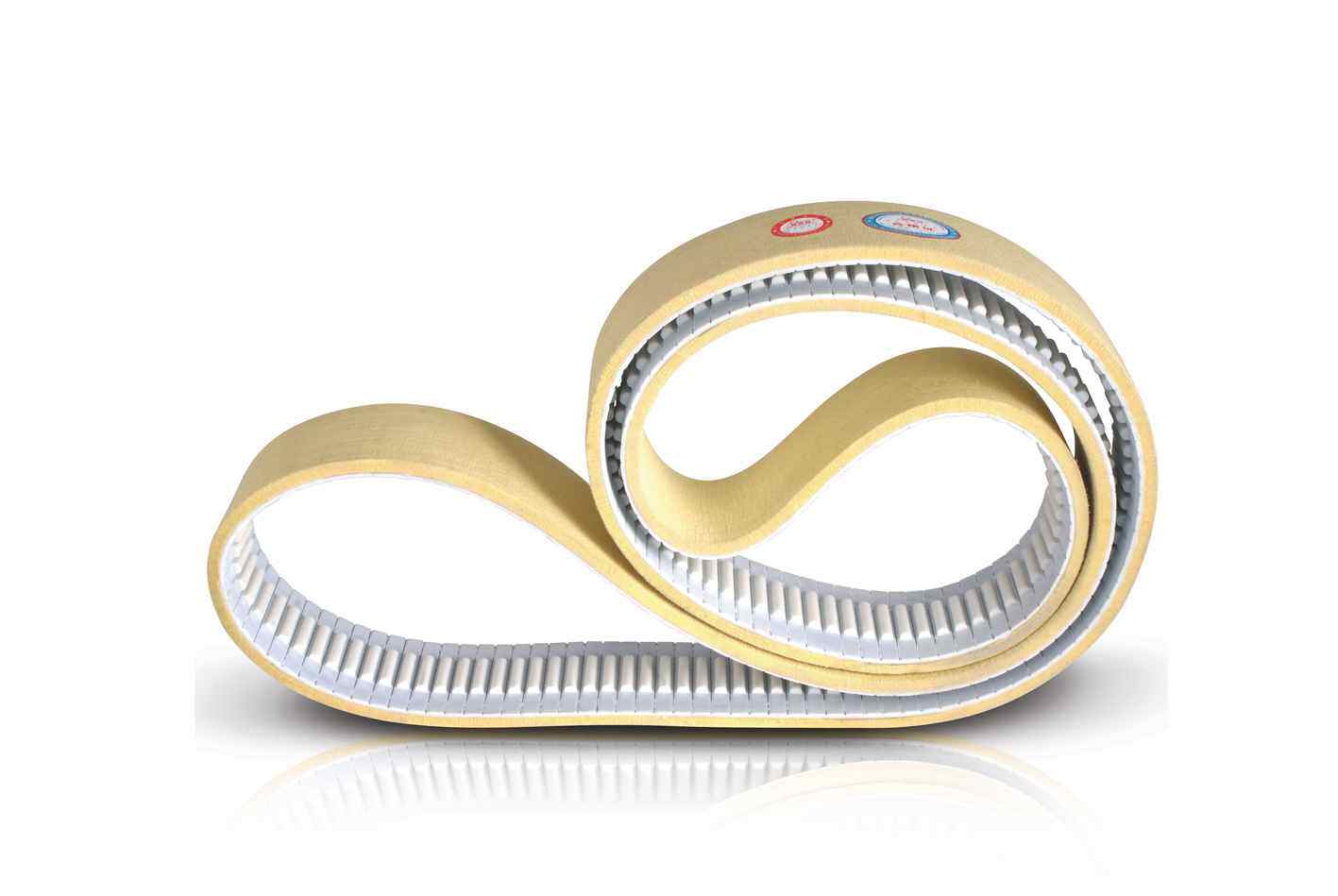

Timing Belt with Felt
Roller sleeve is a rotatable cylindric object that conveys the materials forward. When it comes to aluminium industry, roller sleeves can be used horizontally and vertically, for heat resistance and abrasion resistance. It is mainly used for aluminium extrusion initial table, run-out table, finish cut saw table etc.
- FEATURES -
▲ Timing Belt Of Polyurethane (PU) Material Eco Friendly, of Good Oxidative Stability, of High Flexibility, Oil Resistant, Abrasion Resistant, Anti Aging
▲ With Steel Wire Layer Of Strong Tensile Force, of High Mechanical Strength
▲ Meshing Transmission Of High Transmission Efficiency, Excellent Belt Tracking and No Skidding Even under Heavy Loading, Of Low Noise
▲ Patented Hot Melting Techinics NOT Glue Paste, Inseparable for Timing Belt and Felt
▲ Covered with Felt All Felts Available for Different Positions
- APPLICATION -

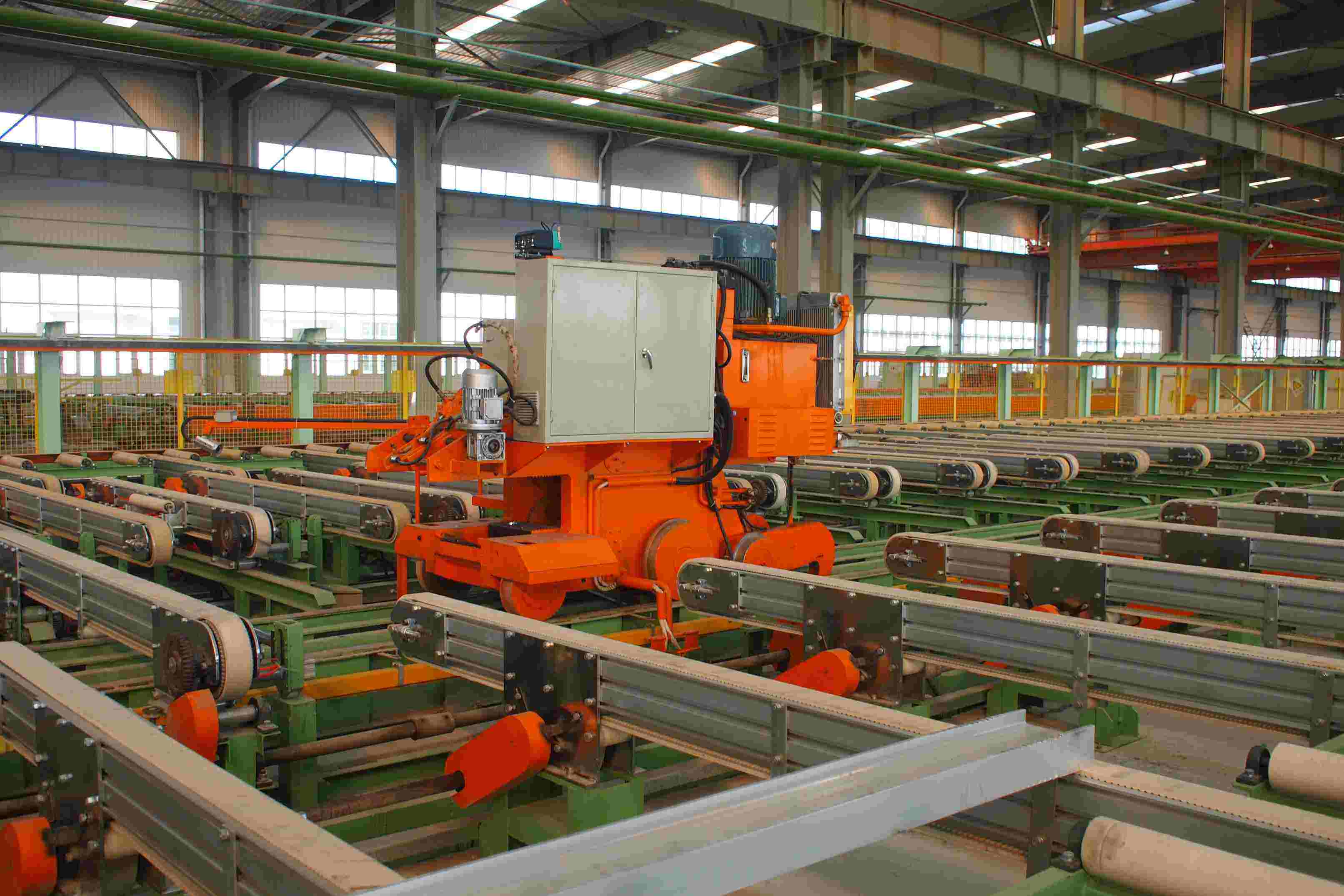

Mainly for Timing Belt Type Aluminium Extrusion Handling System over 2000 Tons

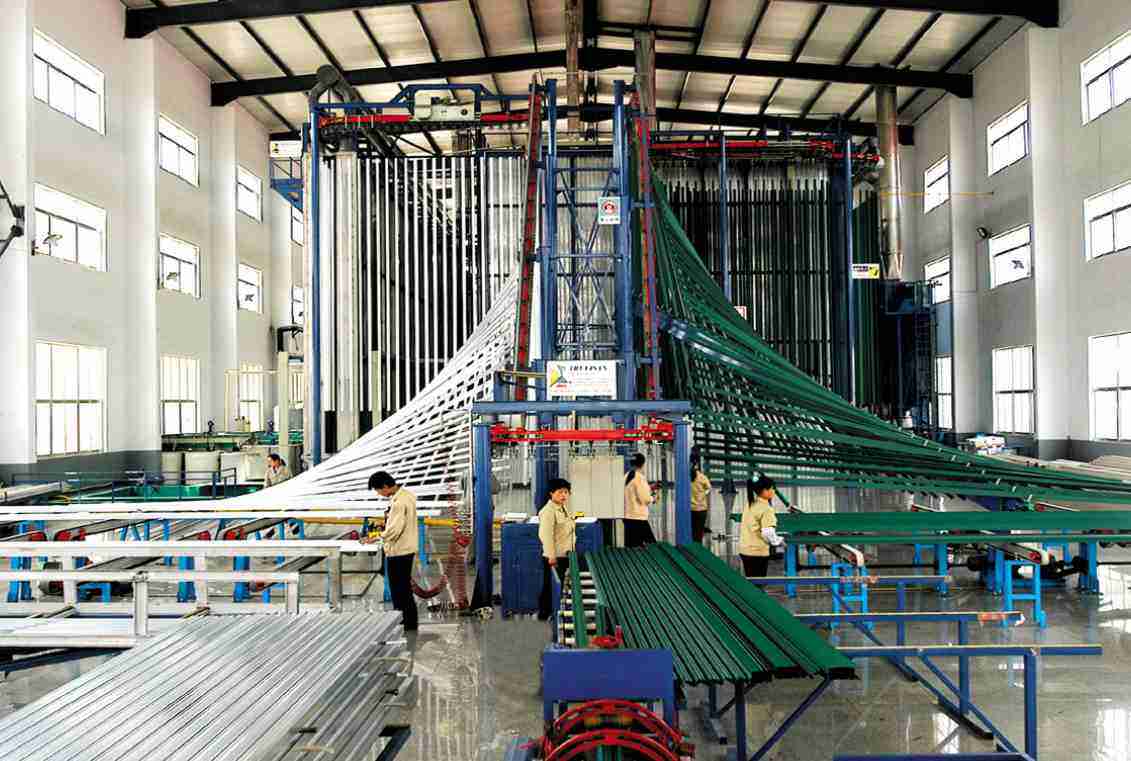

Also for Powder Coating Production Line
- SPECIAL TREATMENT -
With V-guide
PAZ, With Nylon Fabric
With Teeth Grinded ( 15°)
With Teeth Removed

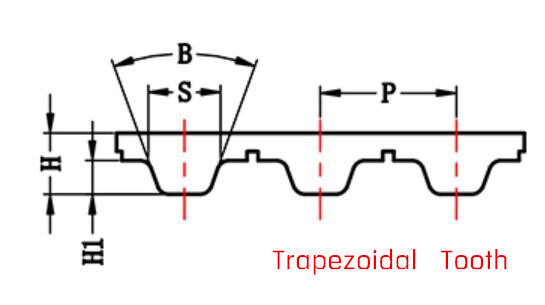

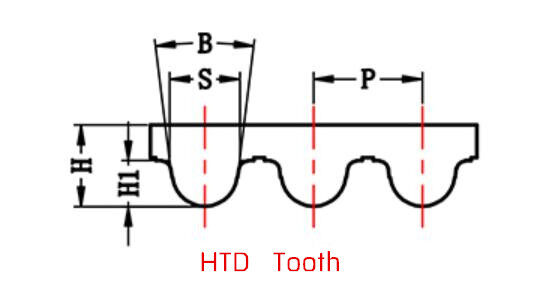

| TYPE | P (MM) | B | S (MM) | H1 (MM) | H1(MM) | MIN. TEETH NUMBER |
| 8M | 8.00 | 14° | 5.15 | 3.38 | 6.00 | 17 |
| 14M | 14.00 | 14° | 9.40 | 6.02 | 10.00 | 25 |
| H | 12.70 | 40° | 6.12 | 2.29 | 4.30 | 14 |
| T10 | 10.00 | 40° | 5.30 | 2.50 | 4.50 | 14 |
| T20 | 20.00 | 40° | 10.15 | 5.00 | 8.00 | 17 |
| AT10 | 10 | 50° | 7.30 | 2.50 | 4.50 | 14 |
| AT20 | 20 | 50° | 14.70 | 5.00 | 8.00 | 25 |
| ATK10 | 10 | 50° | 7.30 | 2.50 | 4.50 | 14 |
| ATK10 | With K13 V-guide Placed Centered on Tooth Side; Dimension: 13×8mm | |||||
Length: up to 20000mm
Width: 20mm - 1300mm
Felt Thickness: 5mm - 9mm
