Polyester Endless Belt
Endless Belt is a flexible medium that carries and transports the materials under the driving of aluminium wheels. It is seamless without joint. When it comes to aluminium industry, endless belts are used for heat resistance and abrasion resistance. It is mainly used for belt type aluminium extrusion handling system.
- FEATURES -
▲ Visible Materials Made of 100% Polyester Fiber With Working Temperature up to 180℃
▲ Needle Punching Technics High Abrasion Resistance and High Density Structure
▲ Paralleled Smooth Cutting For Excellent Belt Tracking
▲ Pure Para-aramid Tension Member Ensuring No Elongation
- APPLICATION -

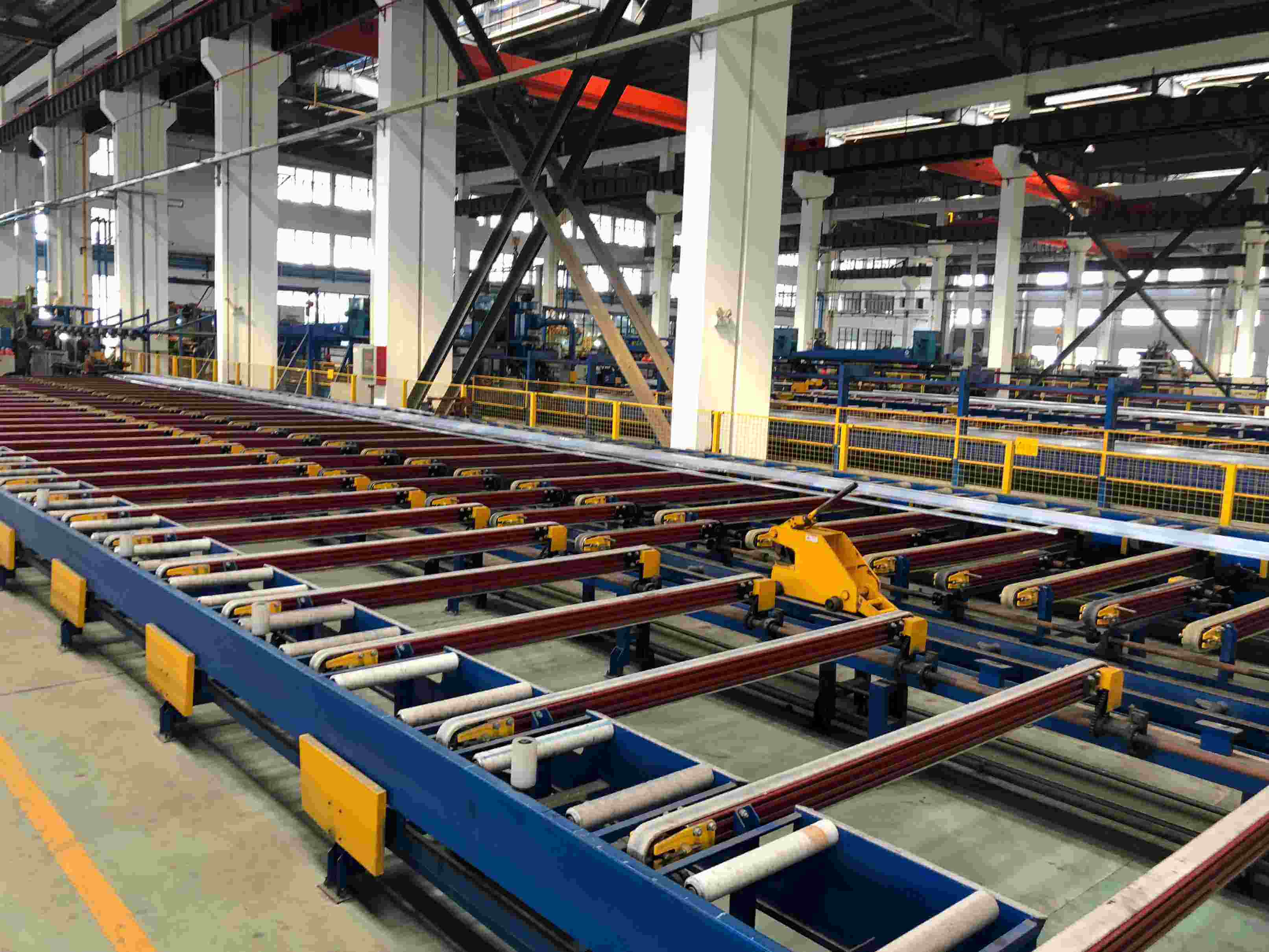

Mainly for Belt-type Aluminium Extrusion Handling System
- Stretcher Table, only for those very light-duty production lines
- Storage Table
- Powder Coating Workshop
- PRODUCTION PROCEDURE -
- PROCESSING OPTION -
With Timing Belt
With V-guide
With Hidden Clipper Lace
With Fastener Belt
Length: 1750mm - 11000mm
Width: 20mm - 1300mm
Thickness: 5mm - 12mm
MOQ: 400mm in total width
Treatment: with Resin Some Tips You Might Know Length = Internal Circumference of the Belts
